Auto Leather Measuring Machine For Cow Sheep Goat Leather

Short Description:

FOR: Used by tannery, shoe factory, furniture factory and etc. to measure finished leather.


Product Detail

Product Video

Features

1. It applies latest Control technology. The measurement is stable and reliable. The machine is sound and durable.
2. It can print normal size as well as the box size in the meantime.
3. It has Leather Choose Function. You can set so that the unqualified leather won’t add in the size.
4. It has Import Function in both Chinese and English on Pc key board. So you can print size list in CHN or ENG or both of them.
5. It can be added up with Label printer, bar code printer, or connected with PC. (Select Function).
6. Automatically printing on leather, adopting high speed CNC motor, which shows the high efficiency and quick speed. (only GLGWQ type).

Main Technical Parameter

Working width( cm)

L*W*H (cm)

Others

180

380*190*90



220

400*230*90

1. Working speed: 27m/min(pig leather 1200pcs/hour)

240

400*250*90



260

430*270*90

2. Motor power:0.37-0.55kw/380V

280

430*290*90



300

450*310*90

3. Resolution: 10 times ±≤1% with same stand board.

320

450*330*90



340

450*350*90

4. Size calibration range: Non correction

Product Details

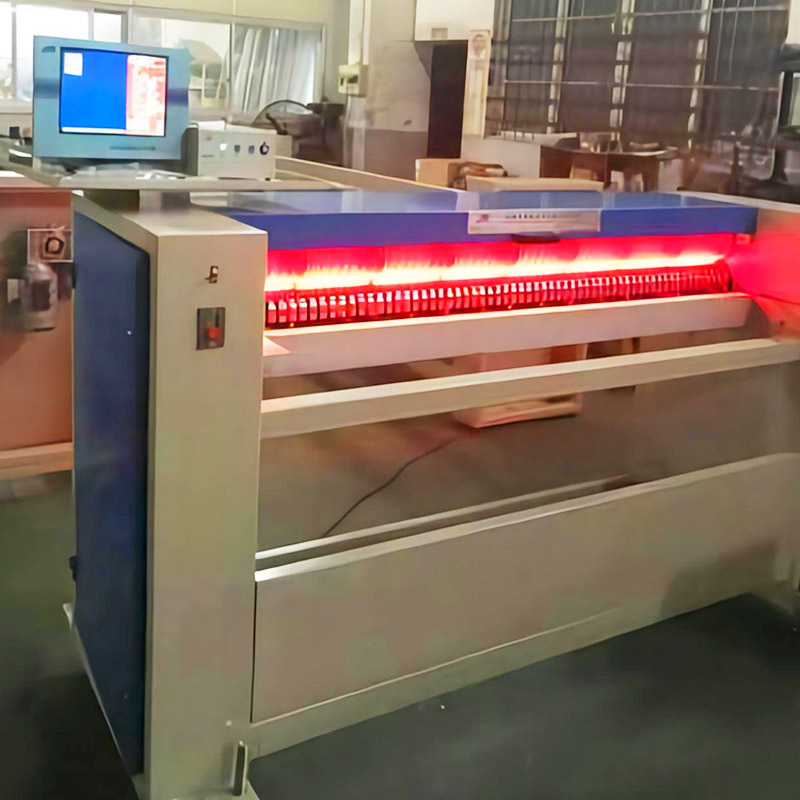

Leather Measuring Machine

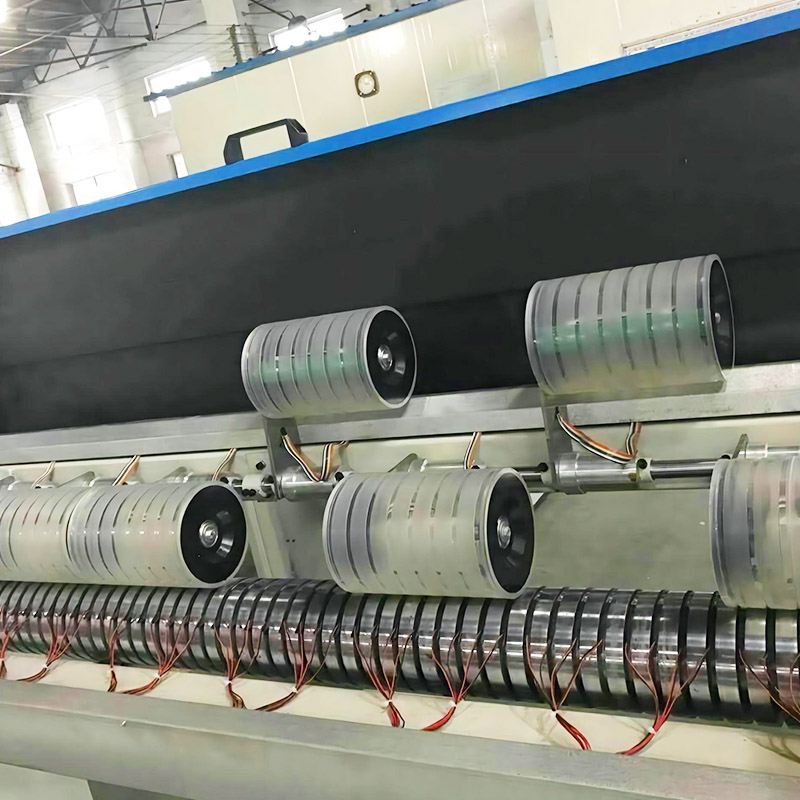

Measuring Machine

Glgwp—Wet-Blue Leather Measuring Machine

FOR: To measure the wet-blue leather before samming. (Notice: Not suit for wet-blue leather after samming.)
Features
1. Use the unique digital reflection sampling technique, and special conveying belt, measurement accuracy reaches the finished product level.
2. Scanners are closely sealed to prevent the chemical pollution.
3. The frame is made of S.S. 304.
4. It is uniquely designed honored the international invention patent.

Main Technical

Working width( cm)

Outside Parameter L*W*H (cm)

Others

180

350*190*90



220

350*230*90

1. Working speed: Use the CVT system. Can change the speed by user according to instruction.

240

360*250*90

 2. Motor power:0.37-0.55kw/380V

260

380*270*90



280

380*290*90

3. Accuracy: 10 times ±≤1% with same stand board.

300

400*310*90



320

400*330*90

4. Size calibration range: Non correction
