Dry Milling Drum Leather Tannery Drum For Cow Sheep Goat Leather

1. Two kinds of milling drum, ROUND and OCTAGONAL shape.

2. All made of 304 stainless steel.

3. Manual/Auto Forward and reverse, positioned stop, soft start, retarding brake, timer alarm, safety alarm etc.

Product Detail

1. Temperature control system.

2. Humidity control system.

3. Dust collecting system.

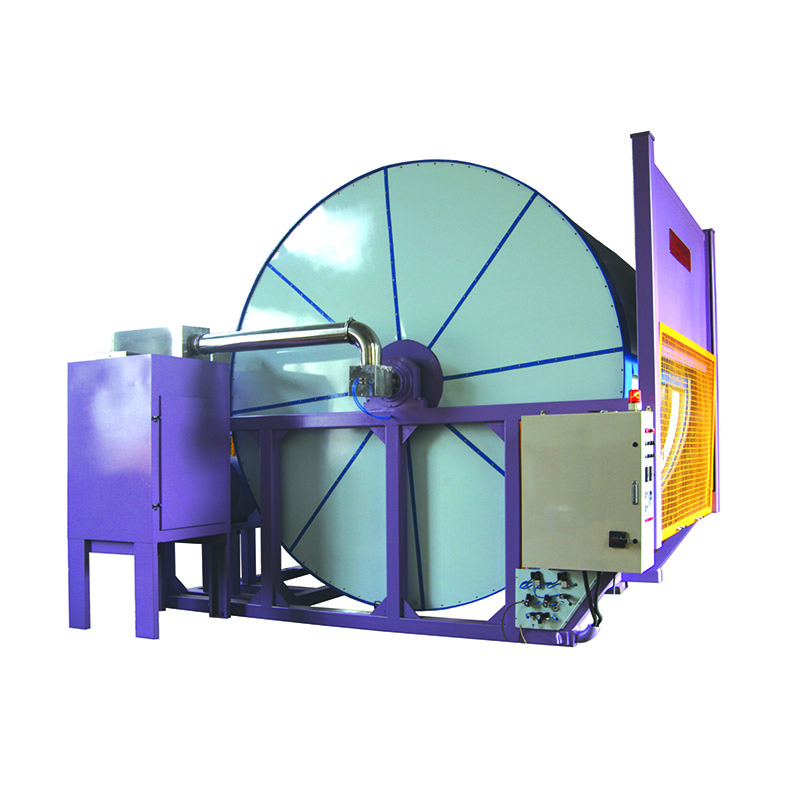

4. Octagonal milling drum with automatic door.

Technical Parameters
Model	Drum size (mm) D×L	Loading capacity (kg)	RPM	Motor power(kW)	Total power(kW)	Machine weight (kg)	Container
GZGS1-3221	Ф3200×2100 (Octagonal)	800	0-20	15	25	5500	Frame container
GZGS2-3523	Ф3500×2300 (Round)	800	0-20	15	30	7200	Frame container
GZGS2-3021	Ф3000×2100 (Round)	600	0-20	11	22	4800	Frame container
GZGS2-3020	Ф3000×2000 (Round)	560	0-20	11	22	4700	20’ Open top container
REMARK: ALSO MAKE CUSTOMIZED SIZE OF WOODEN MILLING DRUM

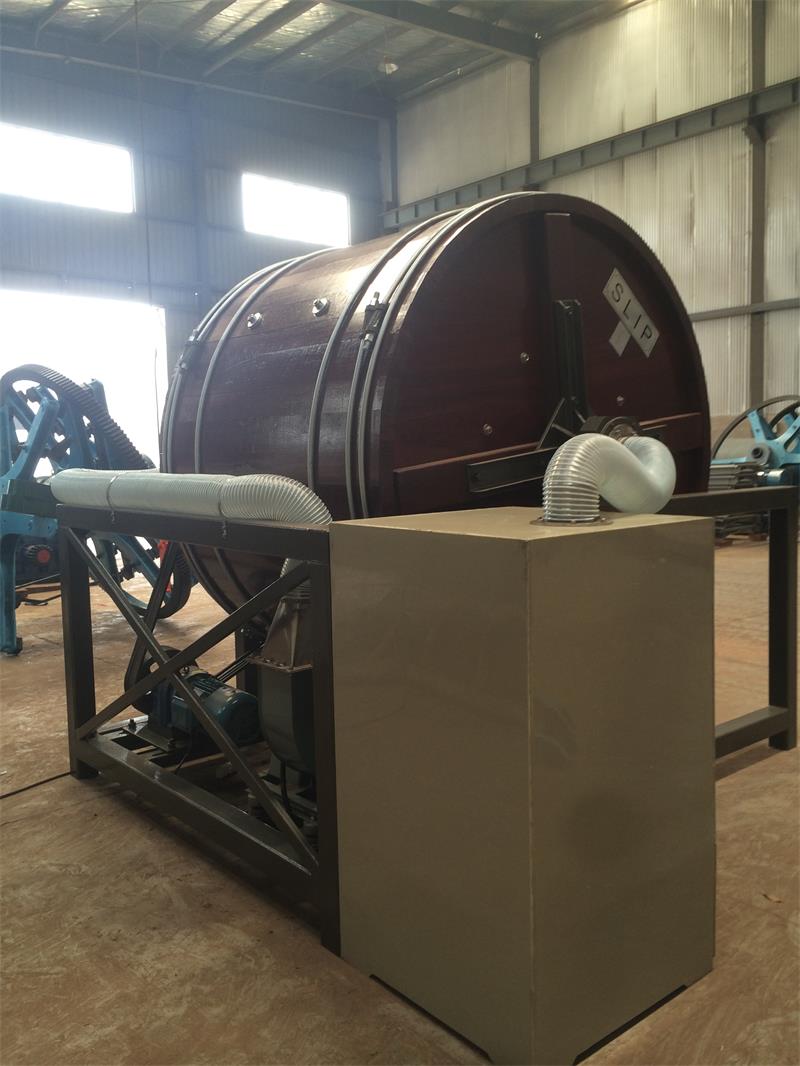

1. Imported EKKI wood from Africa.

2. Manual/Auto Forward and reverse, positioned stop, soft start, retarding brake, timer alarm, safety alarm etc.

3. Dust collecting system.

4. Much cheaper price than stainless steel milling drum.

Technical Parameters
Model	Drum size (mm) D×L	Loading capacity (kg)	RPM	Motor power(kW)
GZGS3-3025	Ф3000×2500	650	0-16	11
GZGS4-3022	Ф3000×2200	600	0-16	11
GZGS4-3020	Ф3000×2000	550	0-16	11
GZGS3-2522	Ф2500×2200	350	0-20	7.5
GZGS3-2520	Ф2500×2000	300	0-20	7.5
REMARK: ALSO MAKE CUSTOMIZED SIZE OF WOODEN MILLING DRUM
