Wooden Normal Drum
FOR SOAKING, LIMING, TANNING, RETANNING & DYEING OF ALL KINDS OF SKINS
1. Drum door, drainage valve and inside screws made of 316L stainless steel, hoops hot galvanization.

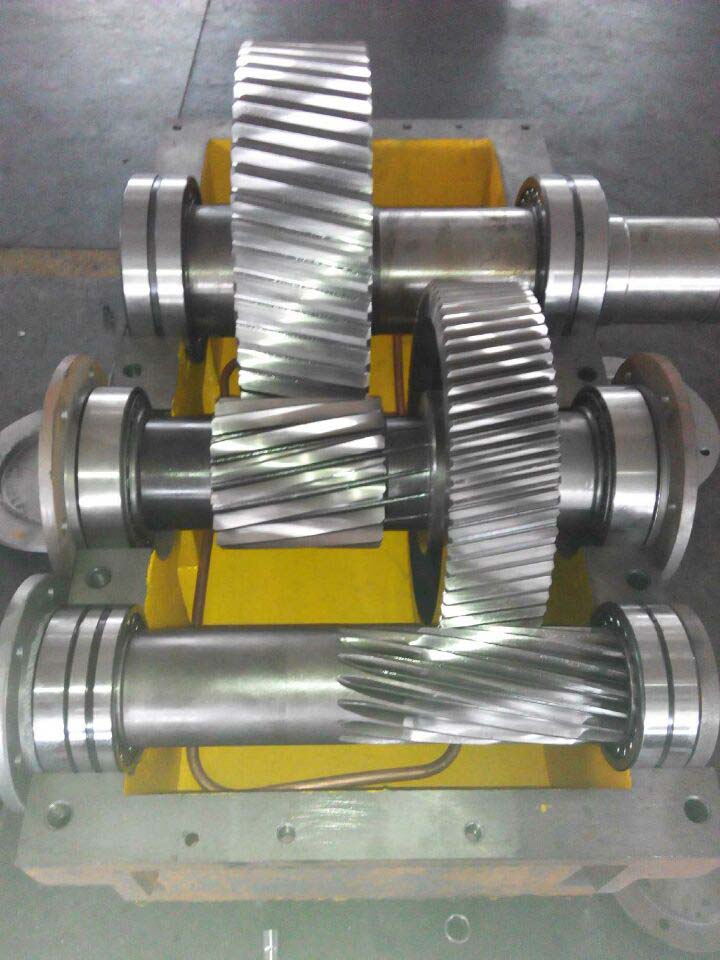

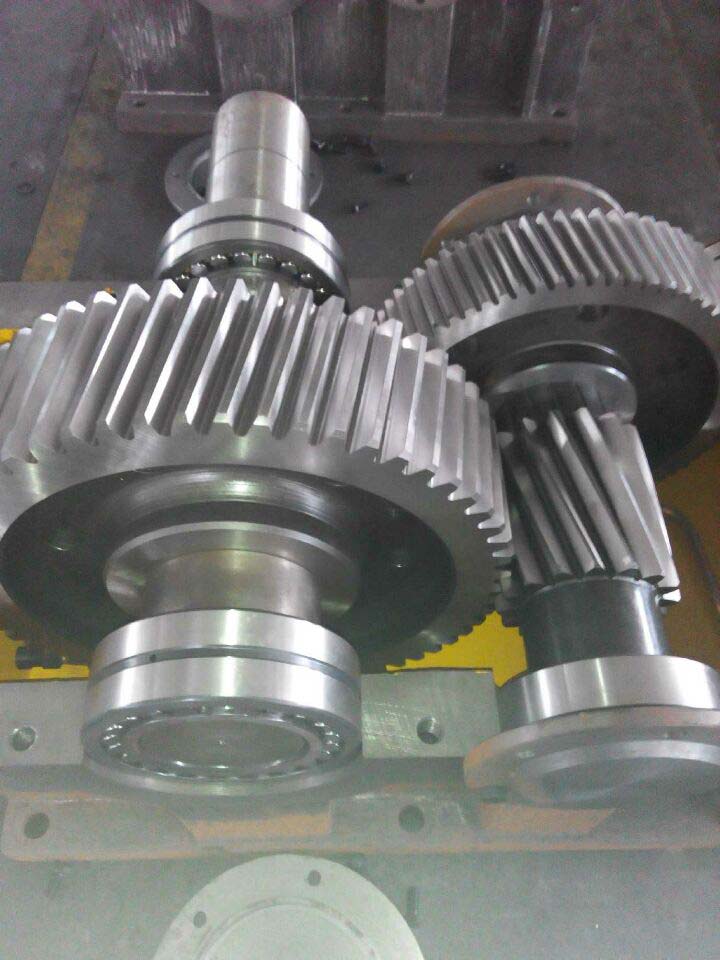

2. Gear box special for drum, no noise.
3. Auto/Manual control, forward and reverse running, one electric control cabinet.
4. Optional single speed, double speed or variable speed by frequency changer, chemical tank.
5. Concrete or steel drum foundation.

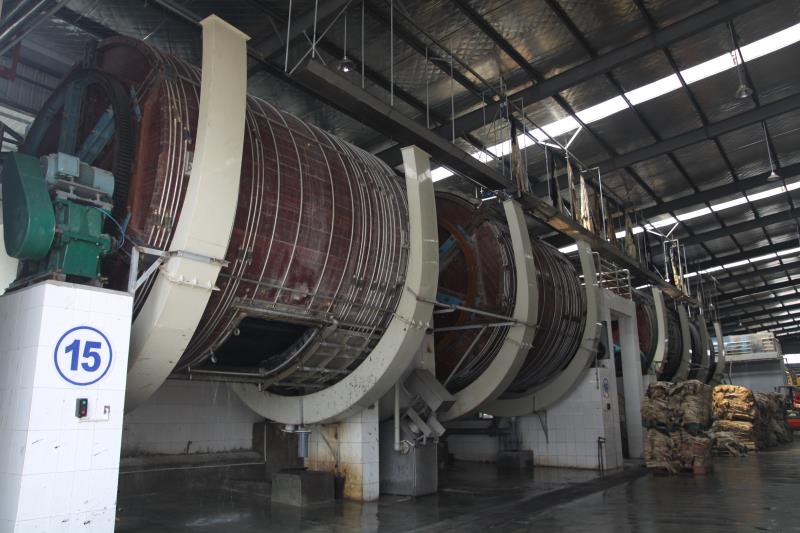

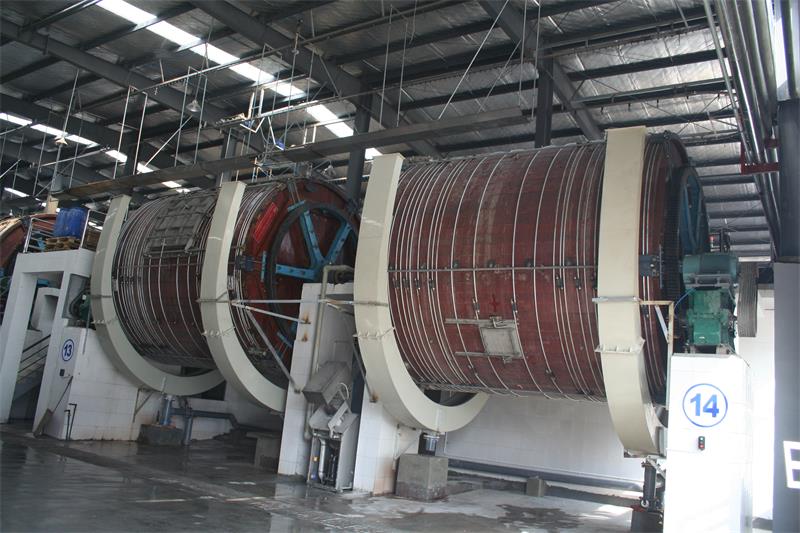

Product Display
Soaking & Liming Process
|
Soaking & Liming Process |
|||||||||||
|
Technical details |
With salted hides Loading capacity |
With green hides Loading capacity |
|||||||||
|
Model |
Drum size(mm) |
RPM standard |
Total drum volume |
Drum volume(m3) |
100% water |
150% water |
200% water |
100% water |
150% water |
200% water |
|
|
Diameter×Length |
(m3) |
Below axle 45% |
Load hides (kg) |
Load hides (kg) | Load hides (kg) | Load hides (kg) | Load hides (kg) | Load hides (kg) | |||
|
GZGP1-4550 |
Ф4500×5000 |
1.5-3 |
66.7 |
30 |
15000 |
12000 |
10000 |
17710 |
14170 |
11810 |
|
|
GZGP1-4545 |
Ф4500×4500 |
1.5-3 |
60.7 |
27.4 |
13700 |
10960 |
9140 |
15760 |
12610 |
10510 |
|
|
GZGP1-4245 |
Ф4200×4500 |
1.5-3 |
52.5 |
23.6 |
11800 |
9440 |
7870 |
13570 |
10860 |
9050 |
|
|
GZGP1-4045 |
Ф4000×4500 |
1.5-3 |
47.4 |
21.2 |
10600 |
8480 |
7070 |
12190 |
9760 |
8130 |
|
|
GZGP1-4040 |
Ф4000×4000 |
2-4 |
41.7 |
18.6 |
9300 |
7440 |
6200 |
10700 |
8560 |
7130 |
|
|
GZGP1-3540 |
Ф3500×4000 |
2-4 |
32.2 |
14.4 |
7200 |
5760 |
4800 |
8280 |
6630 |
5520 |
|
|
GZGP1-3535 |
Ф3500×3500 |
2-4 |
27.8 |
12.5 |
6250 |
5000 |
4170 |
7180 |
5750 |
4800 |
|
|
GZGP1-3530 |
Ф3500×3000 |
2-4 |
23.2 |
10.4 |
5200 |
4160 |
3470 |
5980 |
4780 |
4000 |
|
|
GZGP1-3030 |
Ф3000×3000 |
3-6 |
16.7 |
7.6 |
3800 |
3040 |
2530 |
4370 |
3500 |
2900 |
|
|
GZGP1-3025 |
Ф3000×2500 |
3-6 |
13.8 |
6.24 |
3120 |
2480 |
2070 |
3560 |
2850 |
2380 |
|
|
GZGP1-2525 |
Ф2500×2500 |
4-8 |
9.7 |
4.36 |
2180 |
1740 |
1450 |
2500 |
2000 |
1670 |
|
|
GZGP1-2520 |
Ф2500×2000 |
4-8 |
7.5 |
3.4 |
1700 |
1360 |
1130 |
1950 |
1560 |
1290 |
|
Product Details
Tanning Process
|
Tanning Process |
|||||||
|
Technical details |
Loading capacity |
||||||
|
Model |
Drum size(mm) |
RPM standard |
Total drum volume |
Drum volume(m3) |
With 100% water |
With 150% water |
With 200% water |
|
Diameter×Length |
(m3) |
Below axle 45% |
Load hides (kg) |
Load hides (kg) | Load hides (kg) | ||
|
GZGP2-4545 |
Ф4500×4500 |
2-4 |
60.7 |
27.4 |
13700 |
10960 |
9140 |
|
GZGP2-4245 |
Ф4200×4500 |
2-4 |
52.5 |
23.6 |
11800 |
9440 |
7870 |
|
GZGP2-4045 |
Ф4000×4500 |
2-4 |
47.4 |
21.2 |
10600 |
8480 |
7070 |
|
GZGP2-4040 |
Ф4000×4000 |
2.5-5 |
41.7 |
18.6 |
9300 |
7440 |
6200 |
|
GZGP2-3540 |
Ф3500×4000 |
3-6 |
32.2 |
14.4 |
7200 |
5760 |
4800 |
|
GZGP2-3535 |
Ф3500×3500 |
3-6 |
27.8 |
12.5 |
6250 |
5000 |
4170 |
|
GZGP2-3530 |
Ф3500×3000 |
4-8 |
23.2 |
10.4 |
5200 |
4160 |
3470 |
|
GZGP2-3030 |
Ф3000×3000 |
5-10 |
16.7 |
7.6 |
3800 |
3040 |
2530 |
|
GZGP2-3025 |
Ф3000×2500 |
5-10 |
13.8 |
6.24 |
3120 |
2480 |
2070 |
|
GZGP2-2525 |
Ф2500×2500 |
6-12 |
9.7 |
4.36 |
2180 |
1740 |
1450 |
|
GZGP2-2520 |
Ф2500×2000 |
6-12 |
7.5 |
3.4 |
1700 |
1360 |
1130 |
Re-Tanning & Dyeing Process
|
Re-Tanning & Dyeing Process |
||||||
|
Technical details |
Loading capacity |
|||||
|
Model |
Drum size(mm) |
RPM standard |
Total drum volume |
Drum volume(m3) |
500% liquor-ratio Min |
300% liquor-ratio Max |
|
Diameter×Length |
(m3) |
Below axle 45% |
Load wet blue (kg) |
Load wet blue (kg) | ||
|
GZGP3-3530 |
Ф3500×3000 |
4.5-9 |
23.2 |
10.4 |
1730 |
2600 |
|
GZGP3-3330 |
Ф3300×3000 |
5-10 |
20.7 |
9.3 |
1550 |
2300 |
|
GZGP3-3030 |
Ф3000×3000 |
6-12 |
16.7 |
7.6 |
1270 |
1900 |
|
GZGP3-3028 |
Ф3000×2800 |
6-12 |
16.3 |
7.3 |
1220 |
1830 |
|
GZGP3-3025 |
Ф3000×2500 |
6-12 |
13.8 |
6.24 |
1040 |
1560 |
|
GZGP3-2522 |
Ф2500×2200 |
6-12 |
8.4 |
3.78 |
630 |
950 |
|
GZGP3-2520 |
Ф2500×2000 |
6-12 |
7.5 |
3.4 |
560 |
850 |
|
REMARK: ALSO MAKE CUSTOMIZED SIZE. |
||||||

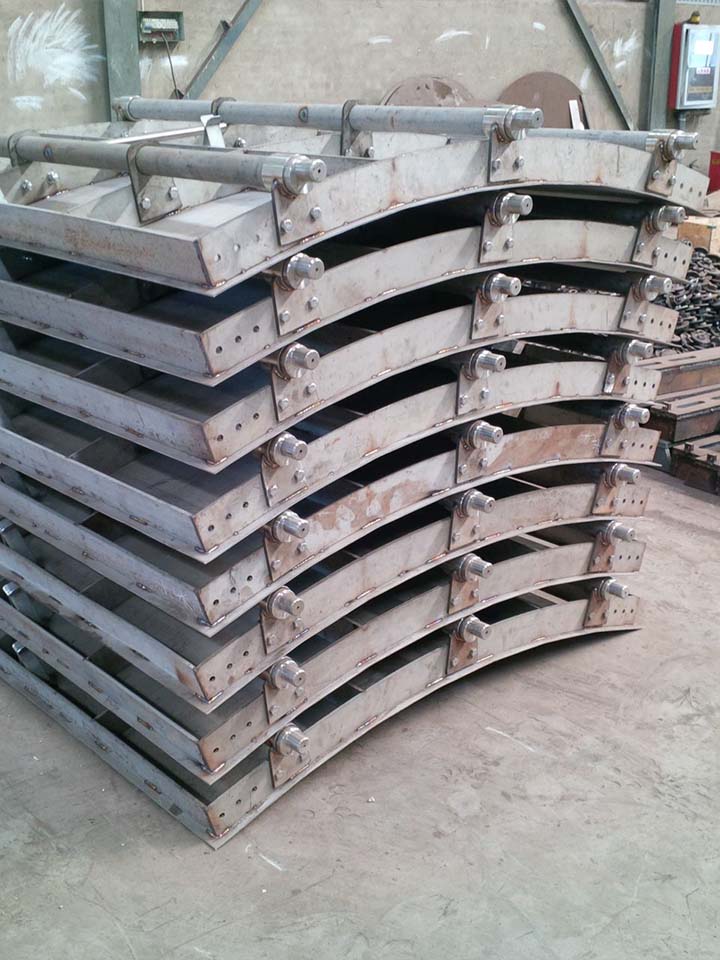

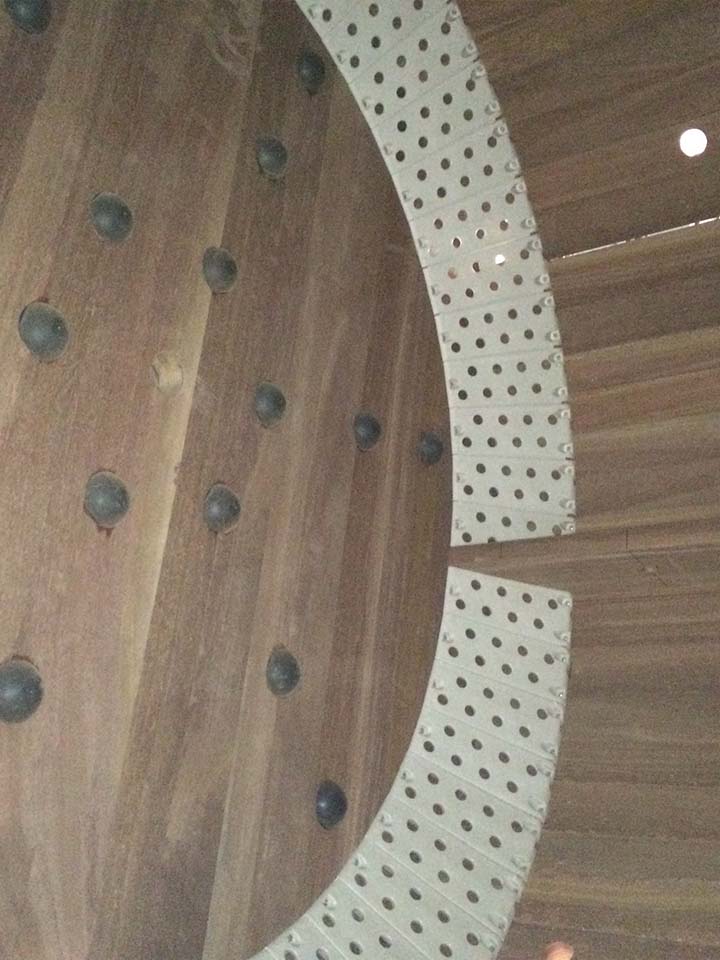

Product detail pictures:
