Hang Conveyor Dry Leather Machine For Cow Sheep Goat Leather

Short Description:

Hang conveyor dry leather machine for all kinds of leather drying process after dyeing, also for drying temperature regulation after vacuum dry or spray.

Send email to us

Product Detail

Product Video

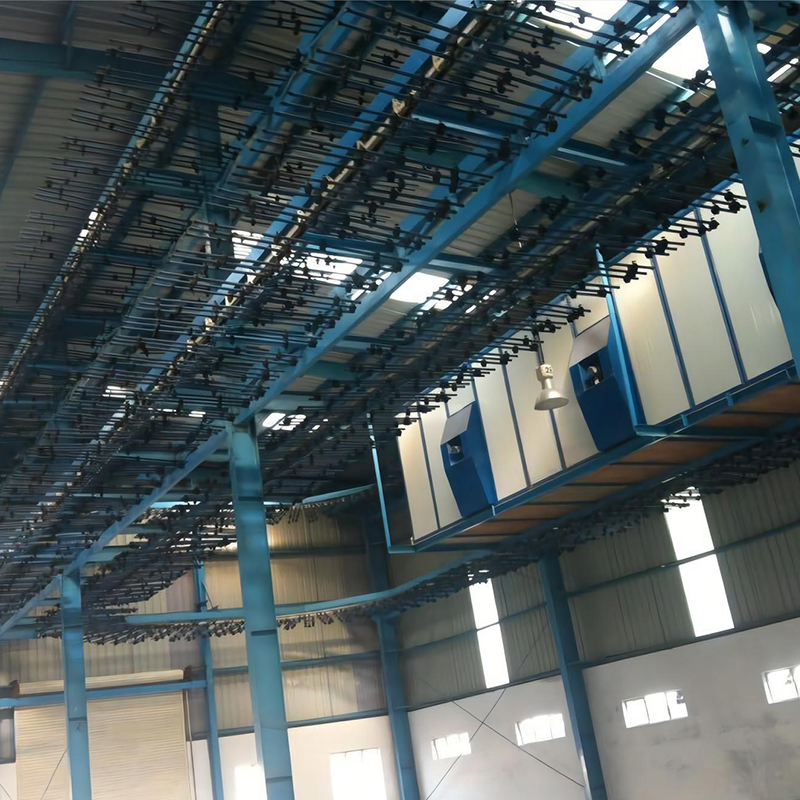

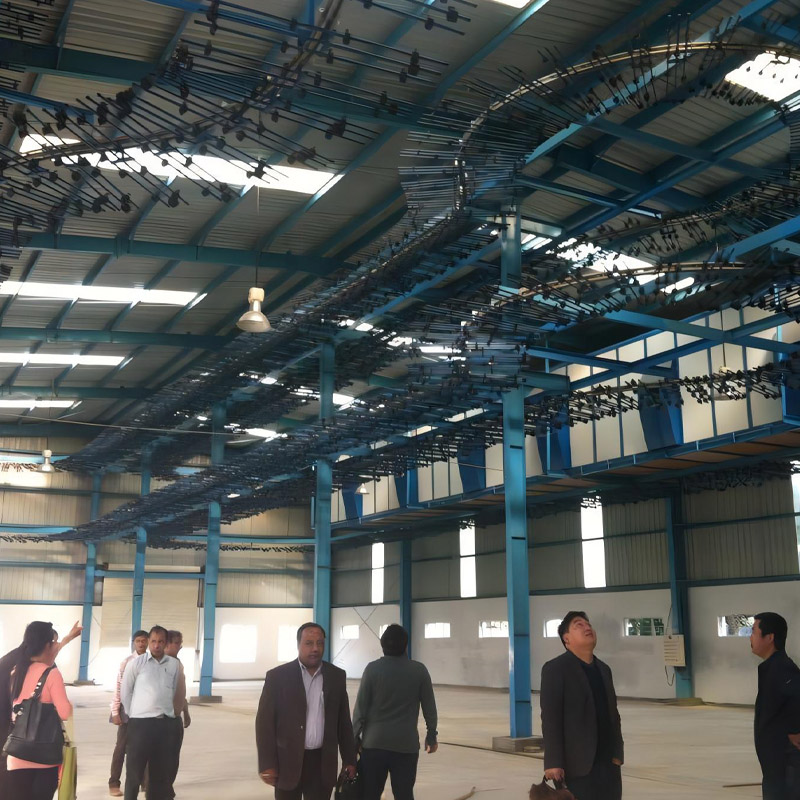

A Hang Conveyor

1. This machine install on the top of the workshop, it is nature dry use the workshop air and hot.

2. This machine possible install on the top of the building.

3. Worker just for loading and unloading the skin.

4. Consisted of runway, conveyor, hanger and drive system.

5. Optional to install the hang dryer oven for dry fast.

6. “H” style hanger with clips or “U” style hanger.

Hang Conveyor Technical Parameters
Model	GGZX406
Conveyor speed (m/min)	0.3-7	Distance between hanger (mm)	406
Point loading weight (kg)	30-50	Power (kW)	1.1-1.5
Dry number (pc/m)	5-10	Turn Round Diameter (m)	≥0.8
Note: The length and width can be customized size

Product Details

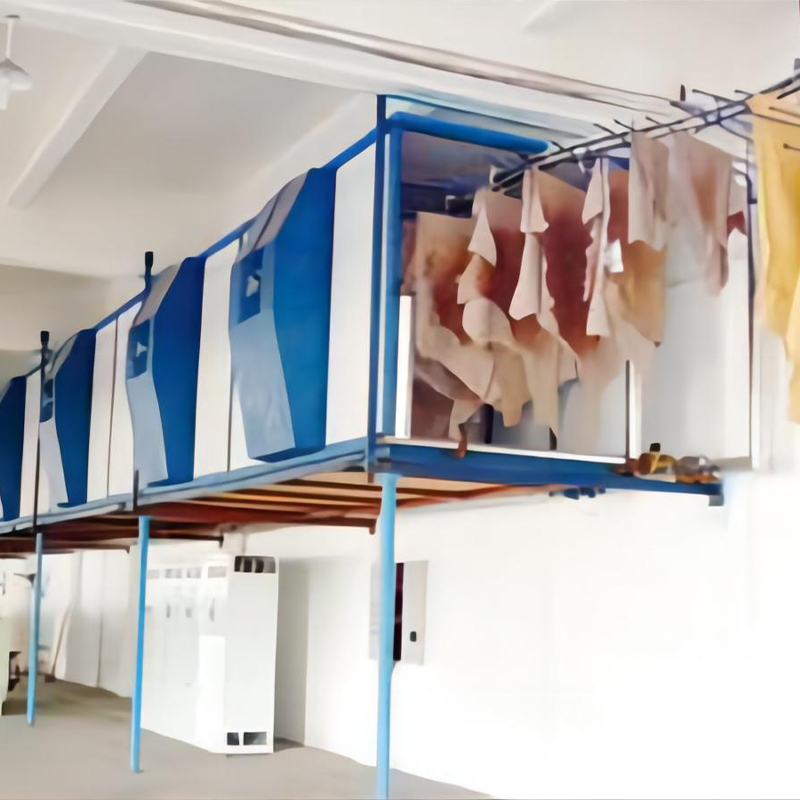

B Double Layer Rotary Dryer (Pole Dryer)

1.Consisted of two layers. Feeding leather skins from the lower layer and out of skin from the upper layer.
2. The drying channel is sheared and welded by plate and section bar, to form a complete channel. Use double-sided color steel sandwich plate to form a whole sealing frame, achieving a good thermal insulation properties of drying channel.
3. The conveyor is consisted of drive unit, pathway, chain and hangers.
4. Steam heating source .Heating unit is consisted of radiator, axial flow fan, to form a complete hot air circulation device. Every two meter form a unit, every unit has two hearing units.
5. Moisture removing unit: provides two centrifugal fan on the bottom to remove moisture in the channel.
6. Auto control the temperature and humidity.

Double Layer Rotary Dryer Technical Parameters
Model	GGZD4 300/6-300/14
Working width(mm)	3000	Steam kg/h	160-640
Conveyor speed (m/min)	1.1-4.4	Hangers (pc)	151-308
Working temperature(℃)	20-70	Power (kW)	14.32-37.92
Capacity (pc/h)	480-960 for sheep skin	320-640 for pig skin	160-320 for cattle skin
Note: The length and width can be customized size
