Hot Sale for Tannery Machine - Shibiao Tannery Machine Overloading Wooden Tanning Drum – SHIBIAO Detail:

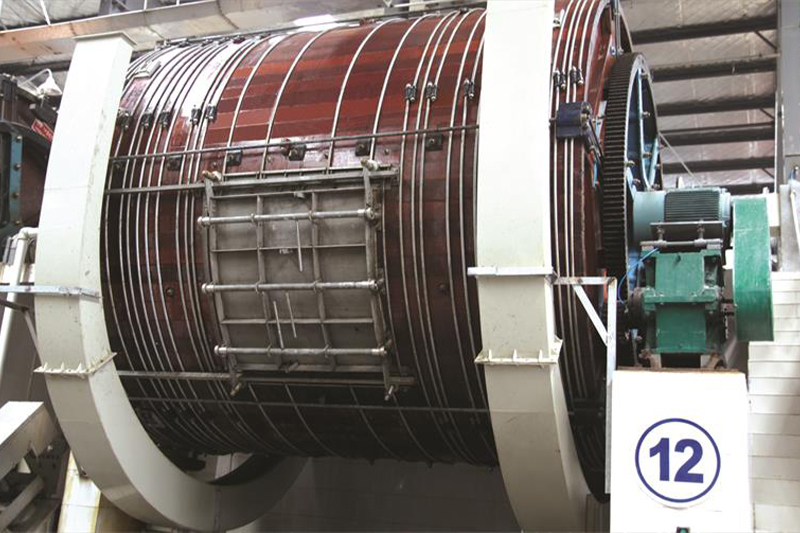

Wooden Overloading Drum
FOR SOAKING, LIMING, TANNING, RETANNING & DYEING OF ALL KINDS OF SKINS
1. Import technology from Italy/Spain, change inner drum structure, highly improve leather movement way, float flowing way and drum running power.
2. Loading capacity 80% more, save 50% water, 25% chemicals, 70% power, 50% space, is the key new environmental equipment.
3. Wood imported EKKI from Africa ,1400kg/m3, natural seasoning for 9-12 months ,15 years warranty.
4. Crown and spider made of cast-steel, casting together with spindle , all use life warranty except normal abrasion.
5. Drum door, drainage valve and inside screws made of 316L stainless steel, hoops hot galvanization.
6. Gear box special for drum , no noise.
7. Auto/Manual control, forward and reverse running, big and small electric control cabinets.
8. Optional single speed, double speed or variable speed by inverter, chemical tank.
9. Both axles closed with more clean tannery.
10. Concrete or steel drum foundation.

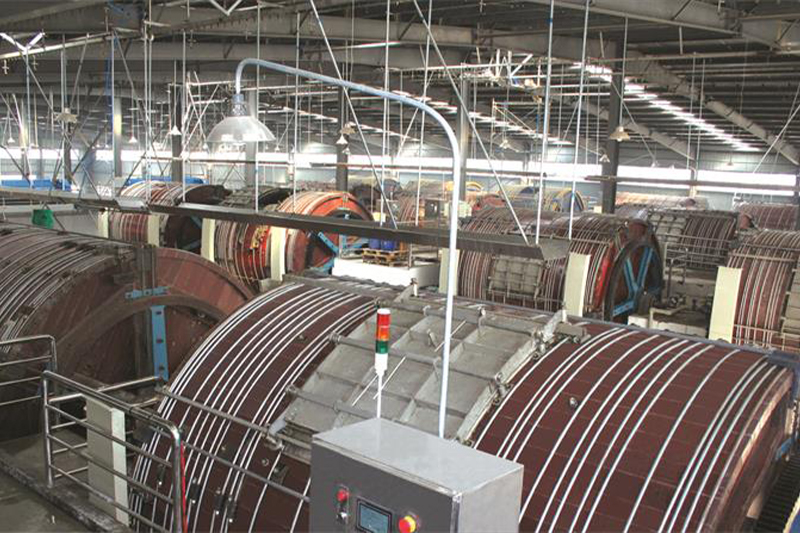

Product Display
Liming Process
|
Liming Process |
|||||||||
|
Technical Details |
With Salted Hides Loading Capacity |
With Green Hides Loading Capacity |
|||||||
|
Model |
Drum Size(Mm) |
Total Drum Volume |
Drum Volume(m3) |
100% Water |
150% Water |
200% Water |
100% Water |
150% Water |
200% Water |
|
Diameter×Length |
(m3) |
Exceed Axle 85% |
Load Hides (Kg) |
Load Hides (Kg) | Load Hides (Kg) | Load Hides (Kg) | Load Hides (Kg) | Load Hides (Kg) | |
|
Gzgc1-4545 |
ф4500×4500 |
60.7 |
51.6 |
25800 |
20600 |
17300 |
29600 |
23700 |
19900 |
|
Gzgc1-4245 |
ф4200×4500 |
52.5 |
44.6 |
22300 |
17800 |
14800 |
25600 |
20500 |
17000 |
|
Gzgc1-4045 |
ф4000×4500 |
47.4 |
40.2 |
20100 |
16000 |
13400 |
23100 |
18400 |
15400 |
|
Gzgc1-4040 |
ф4000×4000 |
41.7 |
35.4 |
17700 |
14100 |
11800 |
20300 |
16200 |
13500 |
|
Gzgc1-3540 |
ф3500×4000 |
32.2 |
27.3 |
13600 |
10900 |
9100 |
15600 |
12500 |
10400 |
|
Gzgc1-3535 |
ф3500×3500 |
27.8 |
23.6 |
11800 |
9440 |
7860 |
13500 |
10800 |
9000 |
|
Gzgc1-3530 |
ф3500×3000 |
23.2 |
19.7 |
9850 |
7880 |
6560 |
11300 |
9000 |
7500 |
|
Gzgc1-3030 |
ф3000×3000 |
16.7 |
14.2 |
7100 |
5650 |
4700 |
8100 |
6500 |
5400 |
Tanning Process
|
Tanning Process |
||||||
|
Technical Details |
Loading Capacity |
|||||
|
Model |
Drum Size(Mm) |
Total Drum Volume |
Drum Volume(m3) |
With 100% Water |
With 150% Water |
With 200% Water |
|
Diameter×Length |
(m3) |
Below Axle 85% |
Load Hides (Kg) |
Load Hides (Kg) | Load Hides (Kg) | |
|
Gzgc2-4545 |
ф4500×4500 |
60.7 |
51.6 |
25800 |
20600 |
17300 |
|
Gzgc2-4245 |
ф4200×4500 |
52.5 |
44.6 |
22300 |
17800 |
14800 |
|
Gzgc2-4045 |
ф4000×4500 |
47.4 |
40.2 |
20100 |
16000 |
13400 |
|
Gzgc2-4040 |
ф4000×4000 |
41.7 |
35.4 |
17700 |
14100 |
11800 |
|
Gzgc2-3540 |
ф3500×4000 |
32.2 |
27.3 |
13600 |
10900 |
9100 |
|
Gzgc2-3535 |
ф3500×3500 |
27.8 |
23.6 |
11800 |
9440 |
7860 |
|
Gzgc2-3530 |
ф3500×3000 |
23.2 |
19.7 |
9850 |
7880 |
6560 |
|
Gzgc2-3030 |
ф3000×3000 |
16.7 |
14.2 |
7100 |
5650 |
4700 |
Re-Tanning & Dyeing Process
|
Re-Tanning & Dyeing Process |
|||||
|
Technical Details |
Loading Capacity |
||||
|
Model |
Drum Size(Mm) |
Total Drum Volume |
Drum Volume(m3) |
500% Liquor-Ratio Min |
300% Liquor-Ratio Max |
|
Diameter×Length |
(m3) |
Below Axle 75% |
Load Wet Blue (Kg) |
Load Wet Blue (Kg) | |
|
Gzgc3-3530 |
ф3500×3000 |
23.2 |
17.4 |
2900 |
4300 |
|
Gzgc3-3330 |
ф3300×3000 |
20.7 |
15.5 |
2500 |
3800 |
|
Gzgc3-3030 |
ф3000×3000 |
16.7 |
12.5 |
2050 |
3000 |
|
Gzgc3-3028 |
ф3000×2800 |
16.3 |
12.2 |
2000 |
2900 |
|
Gzgc3-3025 |
ф3000×2500 |
13.8 |
10.3 |
1700 |
2500 |
|
Gzgc3-2522 |
ф2500×2200 |
8.4 |
6.3 |
1000 |
1500 |
|
Gzgc3-2520 |
ф2500×2000 |
7.5 |
5.6 |
930 |
1400 |
|
REMARK: ALSO MAKE CUSTOMIZED SIZE. |
|||||
Product detail pictures:
