Leather Ironing Machine Tannery Machine For Cow Sheep Goat Leather

Short Description:

For tannery factories and artificial leather factories Ironing the leather

Product Detail

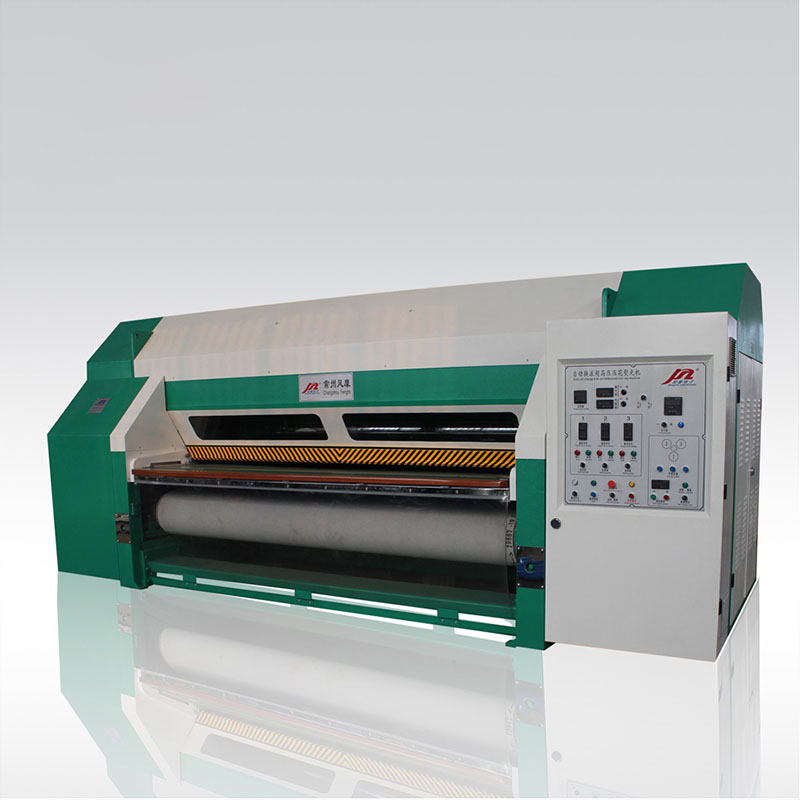

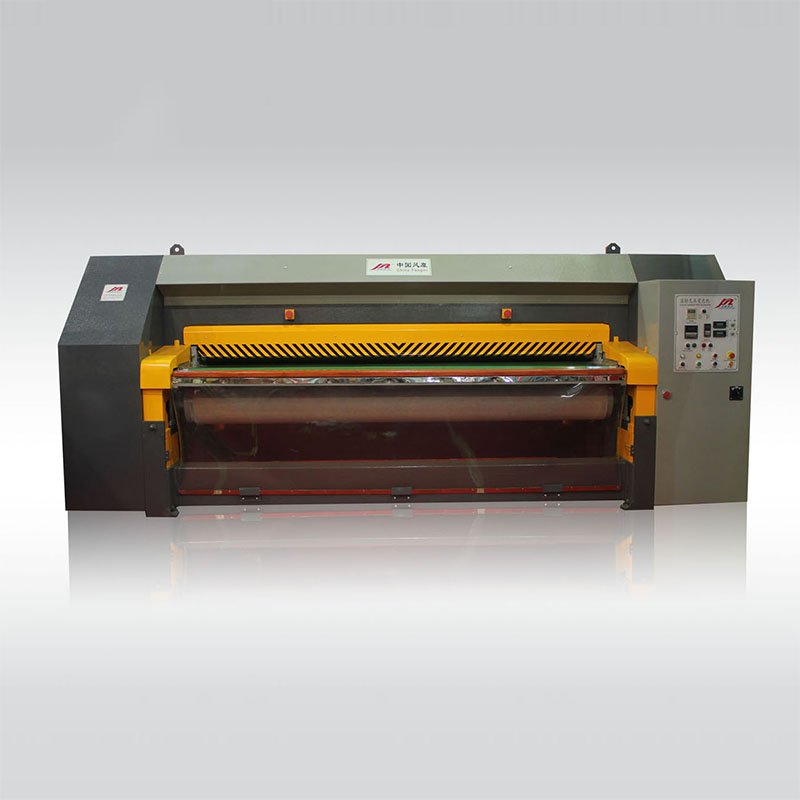

A, B Touch Leather Ironing Machine

A Fmygm -Surface Touch Leather Ironing Machine, B Fmygx -Line Touch Leather Ironing Machine.

1. SURFACE TOUCH- up roller and down roller displacement installation, to ensure 180mm surface touch which improves the ironing effect.
2.LINE TOUCH- up roller and down roller vertical installation, can emboss the pore pattern on leather while ironing.
3. Special down roller can ensure no deformation and bend under the pressure of 60kg (surface touch)/ 150kg (line touch).
3. Computer controls the temperature system, keeping the roller temperature always steady and same.
4. Fine adjustment of pressure device (unique in China): can adjust pressure from 0-60kg(surface touch)/ 10~150kg(line touch).
5. Equipped with intelligent leather stretching device , can guarantee stretching process not to get fold even for a very thin skin such as sheep skin.
6. Timing heating function: can preheat the equipment, and save the boot time.
7. LINE TOUCH --- Oil-pressure type of roller switching device: a supporting frame up of the machine to put the roller. Use oil pressure to change roller, easy for customers to use.

Technical Parameters
Model	Working width (mm)	Working pressure (kg/cm)	Power (kW)	Working Temp. (℃)	Working speed (m/min)	Embossing roller diameter (mm)	Pressure roller diameter (mm)	Weight (kg)	Dimension(mm) L xW xH
FMYGM-160	1600	0-60	38-58	180	3/15	500	400	7200	3800x2200x2000
FMYGM-240	2400							8200	4500x2200x2000
FMYGM-320	3200							9800	5200x2200x2000
FMYGX-160	1600	10-150	38	180	3/15	400	600	7200	3800x2200x2000
FMYGX-240	2400							8200	4500x2200x2000
FMYGX-320	3200							9800	5200x2200x2000

C,D Embossing Machine

C Fmzyq-Lifting Type Super-High Pressure Ironing And Embossing Machine, D Fmzyz-Auto Roller-Changing Super-High Pressure Ironing And Embossing Machine.

For tannery factories and artificial leather factories ironing leather and embossing pattern on leather:
1. Super-high pressure up to 240kg/cm, can emboss full and clear litchi pattern.
2. Equipped with mirror roller which can be switched freely.
3. Imported material of frame and shaft head, high strength that can bear high pressure, never deformation.
4. Imported key spare parts, such as motor, bearing, heater and blankets.
5. LIFTING TYPE- equipped with auto lifting frame. It can reserve 3 rollers, easy to change.
6. LIFTING TYPE- can stretch the wrinkled leather by using the intelligent high precision leather stretching device.
7. AUTO TYPE- equipped with auto roller-changing device,just press the button to change the rollers, unique in China.
8. AUTO TYPE- each roller has its own independent heating system. When switching the roller, no need to install the heating system again, extremely easy to use.
9. Computer controls the temperature system, keeping the roller temperature always steady and same.
10. Timing heating function: can preheat the equipment, and save the boot time.

Technical Parameters
Model	Working width (mm)	Working pressure (kg/cm)	Power (kW)	Working Temp. (℃)	Working speed (m/min)	Embossing roller diameter (mm)	Pressure roller diameter (mm)	Weight (kg)	Dimension(mm) L xW xH
FMZYQ-160	1600	240	38-38	180	3/12	500	700	11900	4100x2200x3000
FMZYQ-240	2400							12000	4700x2200x3000
FMZYQ-320	3200							12600	5700x2200x3000
FMZYZ-160	1600	240	132	180	3/15	500	700	12500	4100x2200x3000
FMZYZ-240	2400							16000	4600x2200x3000
FMZYZ-320	3200							18000	5700x2200x3000

Product Details

Leather Ironing Machine Tannery Machine For Cow Sheep Goat Leather

E YP Series Ironing And Embossing Platen Machine

*It is mainly used in leather industry, renewable leather manufacturing, and textile printing and dyeing industry.

*It is applicable for techonical pressing and embossing of cowhide, pigskin, sheepskin, second skins and shift membrane leather.

*Through the modification of surface of the leather and cover disability, improving the grade of leather.

*This machine adopts board-like frame structure and single-cylinder up style hydraulic press, and the contrl systems are authoritative international brand products.

*Stronger iron machinery frame, never broken. With urgent safety protect device.

Technical References
Model	YP1500	YP1100	YP850	YP700	YP600	YP550
Nominal pressure(KN)	15000	11000	8500	7000	6000	5500
System pressure(Mpa)	24	27	26	25		28
Working width(mm)	1370x1000(1370x915)			1370x915
Distance of table(mm)	140			120
Frequency of stroke(str/min)	6~8	8~10		10~12
Pressure keep time(s)	0~99
Temp. of table(℃)	Conservatory~150
Motor power(KW)	45	30	22	18.5		15
Heating power(KW)	22.5		18
Dimension(mm)
Weight(≈kg)	29000	24500	18800	14500	13500	12500
