Leather Spraying Machine Tannery Machine For Cow Sheep Goat Leather

Short Description:

For spraying the pattern or color on the leather, replacement of the roller coating machine.


Product Detail

Product Video

A Spraying Machine

1. Stainless steel spraying cabinet in high and digital polished pattern.

2. The bottom of cabinet is stainless steel water board, water pump continuously flushing to ensure a clean spray cabinet.

3. Special and dedicated dust blower which has 33000-66000 m3/h, makes sure best dust removing effect for the spray chamber.

4. Scientific and rational dust processing device: a water curtain in air outlet, it equips with three water filtration inside, the fan is with large door design, easy to clean and maintenance. After processing, leather dust and slurry fog into water tank.

5. The wire washing system use double brush system, to ensure that the leather is not contaminated by slurry.

6. Dry system could choose steam, oil, electric heat, fuel heat and etc.

7. Exclusive “High Density” computer which could save 10-20% slurry.

8. Three types: rotary type, reciprocating type and mixed type.

Technical Parameters

Model

FMPJJ

Working size (mm)

1200,1600,1800,2200,2400,2600,2800,3000,3200,3400

Length (m)

Standard size 20-23M, drying tunnel 10m

Motor power (kW)

17-22kW

Transmission speed

Continuously variable

Speed of rotary table (r/min)

0-30 (For the reciprocating way can reach 40)

Gun number (pcs)

2-24 ,(custom made is available), Germany or Italy

Dust blower power (m3/h)

33000-66000

Configuration of dust blower

A set for machine that size below 280cm. Two sets for machine that size above 300cm.

Wash wire

water washing, washboard, or squeegee board for choice

Dry tunnel

5units,10m, (custom made is available)

De-humidity fan

1 set

Cooling fan

1 set

Transmission material

Nylon wire, Teflon, Steel wire

Product Details

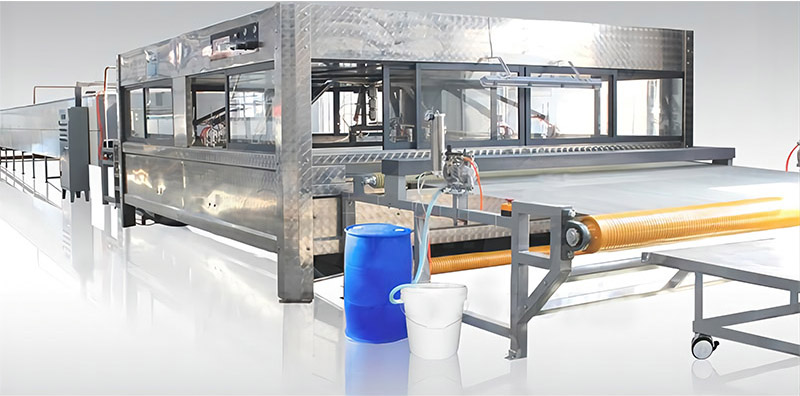

Leather Spraying Machine

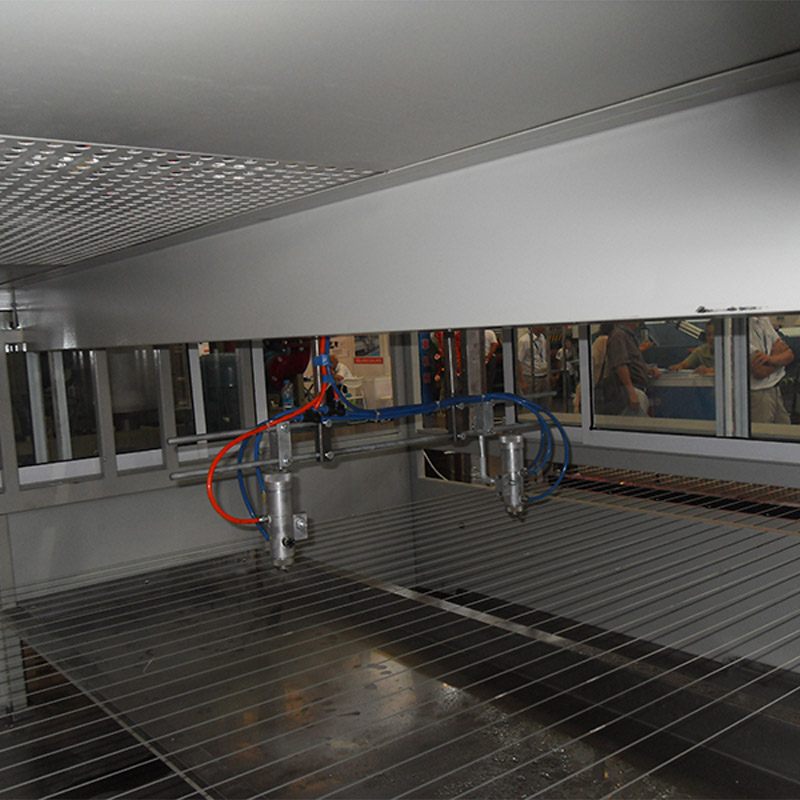

Leather Spraying Machine

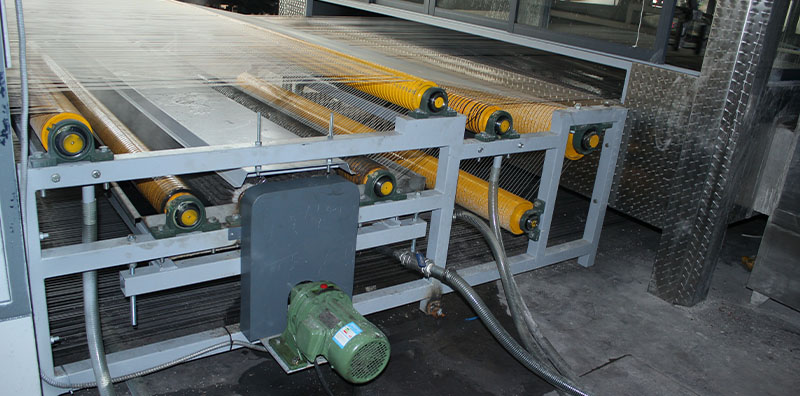

Pu Leather Spraying Machine

B Manual Spraying Booth

For sampling proofing in lab or factories for small production.

1. Totally made of stainless steel.

2. Unique water curtain prevents contamination of the environment, and protects the health of operators.

3. Equipped with low power dust blower,to keep good dust removing effect.

4. Could be extended with mini leather dryer tunnels.

Technical Parameters

Model

FMSGPT

Machine size(mm) L xW xH

2400x1900 x2200 (size can be customized)
