We usually believe that one's character decides products' high quality, the details decides products' excellent ,with the REALISTIC,EFFICIENT AND INNOVATIVE staff spirit for Vegetable Tanning Process, Leather Samming Machine, Tannery Machine Parts, Never-ending improvement and striving for 0% deficiency are our two main quality policies. Should you need anything, don't hesitate to contact us.
Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO Detail:

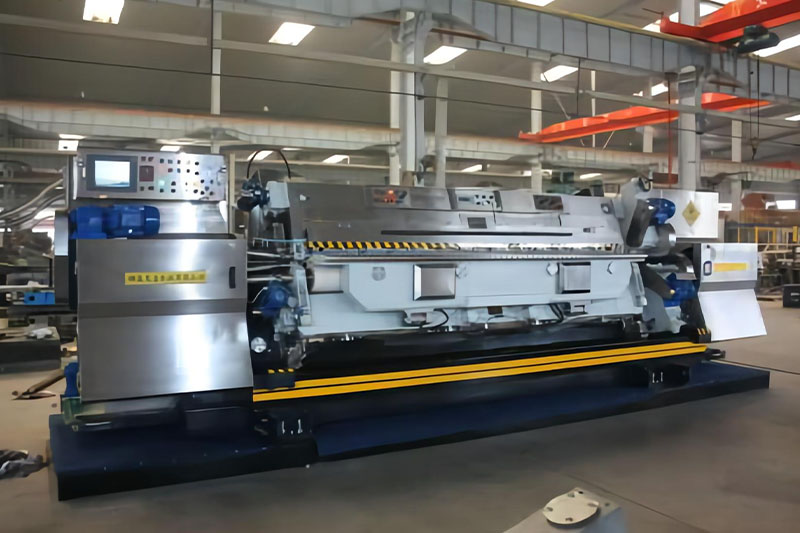

A Splitting Machine Cooperated With Mercier

1. The mini thickness for chrome leather is 0.6mm,precision ±0.1mm, for limed skin is 1mm, precision ±0.2mm.
2. PLC control system, all electric parts with water proof, memory all once stop electricity.
3. Can program the adjustment parameters into a menu, automatically adjusted in place.
4. It has a high reset precision of the feeding roller and cooper roller.
5. The relative position between the nylon roller and feeding roller can be manually adjusted.
6. With the system, rising ,falling and bending of the feeding roller and copper roller, the parameters can be adjusted.
7. The sharpness relative position with feeding roller, cooper roller by digital control.
8. The pressure plate front edge position by digital control.
9. The pressure plate can automatically open and close, convenient to replace and clean.
10. The position of band knife is exact orientation the sensitivity is 0.02mm, and retract quickly.
11. Fixed automatic braking device when the band knife off the position, ensure the safety.
12. Convenient to change the band knife, no need to remove the spline shaft and cardan joint etc.
13. Equipped with horizontal conveying device of a lower skin, can get out the skin from the left or right side, easy to change.
14. Convenient to add automatically move out the skin device when split limed skin.
15. Fixed automatic lubrication device.

Technical Parameter

Model

Working width

(mm)

Feeding speed

(m/min)

Total power

(kW)

Dimension(mm)

L×W×H

Weight

(kg)

GJ2A10-300

3000

0-42

26.08

6450×2020×1950

8500

Product Details

24
23

C Normal Type Splitting Machine

For splitting various wet blue skin ,dry finished leather or synthetic leather

1. The mini thickness for wet blue leather is 0.5mm, precision ±0.08mm, finished leather is 0.3mm,precision is ±0.06mm.
2. PLC control system, all electric parts with water proof, memory all once stop electricity.
3. The pressure plate front edge position by digital control.
4. The blade tension device is independent with operate system, the pressure display by pressure meter.
5. The position of band knife is exact orientation the sensitivity is 0.04mm.
6. PLC control the feeding roller rise or down finely.
7. The distance between cooper ring roller and blade is easy to adjust.

Technical Parameter

Model

Working width (mm)

Feeding speed (m/min)

Total power (kW)

Mini thickness (mm)

Dimension(mm)

L×W×H

Weight

(kg)

GJ2A9-120

1200

6.4- 32

9.96

0.3

3880×1150×1570

2140

GJ2A9-150

1500

6.4- 32

14.18

0.3

4180×1150×1570

2560

GJ2A9-180

1800

7-36

15.74

0.5

5075×1600×1950

7200

GJ2A9-300

3000

7-36

19.54

0.5

6275×1600×1950

8000

GJ2A9-320

3200

7-36

20.54

0.5

6475×1600×1950

8500
Product detail pictures:

Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO detail pictures

Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO detail pictures

Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO detail pictures

Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO detail pictures

Low MOQ for Rotary Type Toggling Machine - GJ2A10-300 Precision Splitting Machine For Cow Sheep Goat Leather – SHIBIAO detail pictures
