Splitting Machine Tannery Machine For Cow Sheep Goat Leather

Short Description:

For limed leather or wet blue leather or dried leather splitting process of all kinds of skins, including for sheep/goat skin. It’s the one of the high-precision key important machine.


Product Detail

A Splitting Machine Cooperated With Mercier

Mercier, well-known worldwide as specialist in manufacturing splitting machines, taking advantage from the experience gained with making more than 1000 machines, now develop an update version of SCIMATIC, suitable for splitting hides in Lime, Wet blue and Dry.

1. SCIMATIC splitting machine is made up of two “parts”, fixed part and mobile part. It’s the special technology of Mercier.

2. Fixed part : shoulders, connection beams, upper bridge with conveyor roller, lower bridge with table and ring roller.

3. Mobile part: can move completely to control the distance between the cutting edge of band knife and the feeding plane more precisely .Band knife driving system, band knife positioning system and grinding system are installed on one strong main girder, made of high-precision ball screw.

4. Strong structure: SHOULDERS, BED, UPPER BRIDGE, LOWER BRIDGE, TABLE and its SUPPORT, FLY WHEEL SUPPORT, GRINDING DEVICE are all made of high quality cast iron.

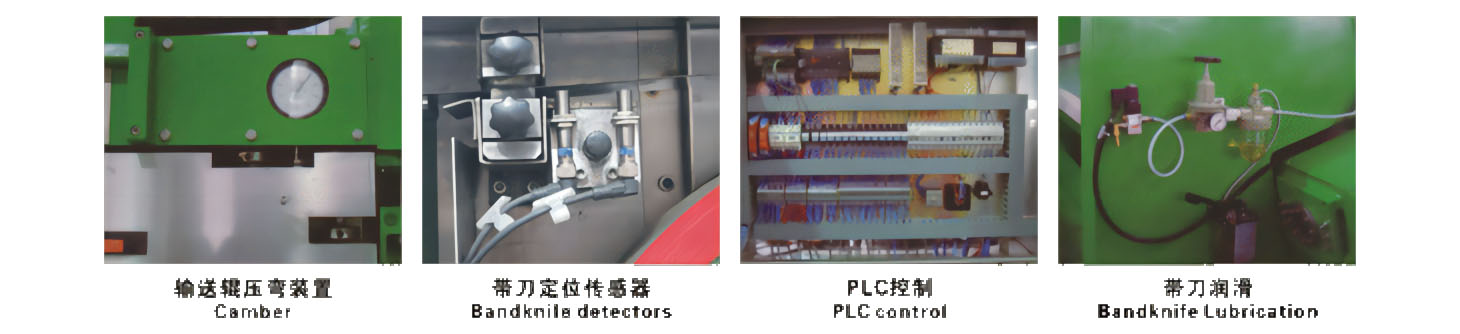

5. Two electro-magnetic sensors and two touch screens make operation convenient.

6. Controlled by PLC to obtain better splitting result.

7. If band knife stops or unexpected power off, Grinding stones will be separated from band knife automatically to protect band knife.

8. Wet blue and dry leather splitting machines both provide dust collector during sharpening.

9. SCIMATIC5-3000(LIME) is equipped with Extractor GLP-300 which is initiative in China. Feeding speed is 0-30M adjustable, splitting precision is ±0.16mm.

Product Details

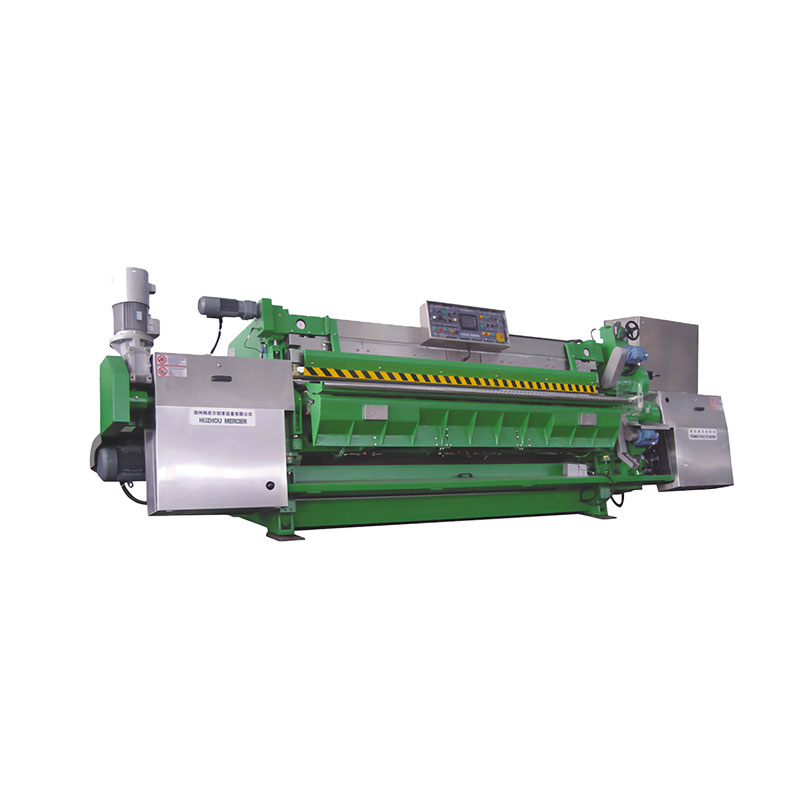

Splitting Machine Tannery Machine For Cow Sheep Goat Leather

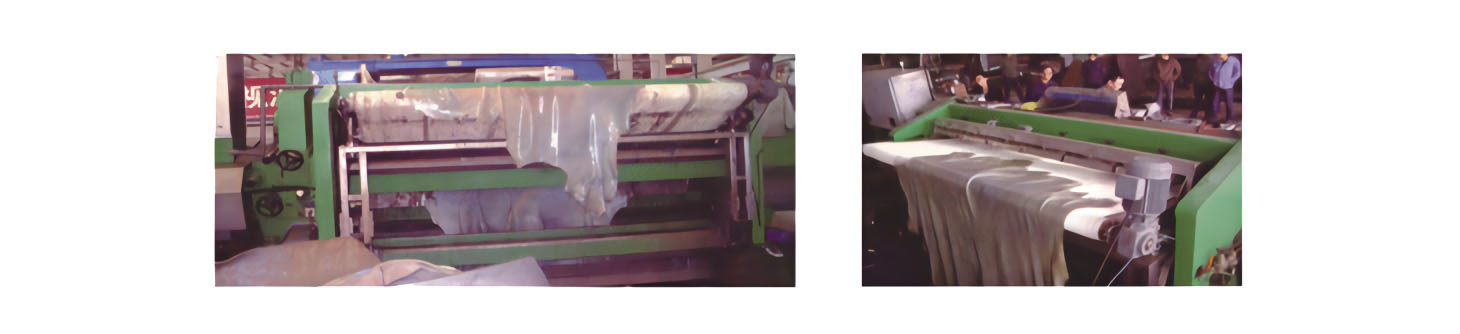

Splitting Machine
Dry Leather Splitting Machine

Technical Parameter

Model

Working width

(mm)

Feeding speed

(m/min)

Total power

(kW)

Dimension(mm)

L×W×H

Weight

(kg)

Scimatic2

1500

0-28

22

4910×1685×2000

5900

Scimatic3

1850

4-40

31.2

5260×1685×2000

6200

Scimatic4

2300

4-40

31.2

5710×1685×2000

6900

Scimatic5

3000

4-40

36

6410×1685×2000

7800

Scimatic6

3400

4-40

36

6810×1685×2000

8900
