Toggling Machine For Cow Sheep Goat Leather

Short Description:

For all kinds of leather stretching, setting-out and finalizing the shape process after staking or vacuum dry

1. Chain and belt type drive.
2. Steam, oil, hot water and others as heating resource.
3. PLC auto control the temperature, humidity, running time, count leather, track auto lubricate, leather stretch and finalize the shape, expand the yield of leather more than 6%.
4. Manual or auto control.

Send email to us

Product Detail

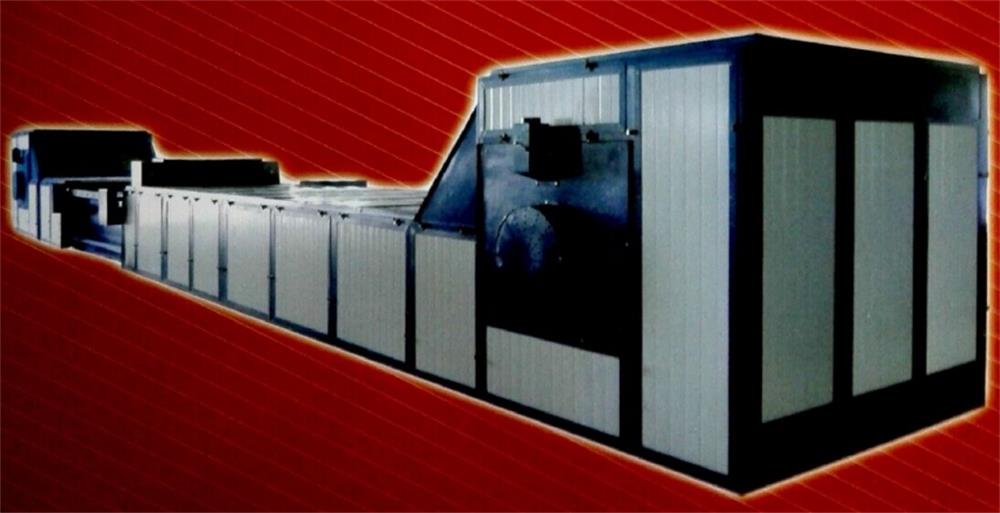

A Automatic Chain Type Toggling Machine

Model	Working width (mm)	Stretch range (mm)	Capacity (pc/h)	Energy (Mpa)	Oven temp. (℃))	Speed (m/min)	Motor power (kW)	Steam (kg/h)	Weight (kg)
GGZB3-160	1600	0~120	pig skin:180 sheep skin:220 cow:60	0.63pa	20-70	16.5	12.55	65	12970
GGZB3-180	1800						13.55	70	13500
GGZB3-200	1800						14.55	75	14000
GGZB3-220	2400						14.55	80	14700

B Rotary Toggling Machine

Big machine for stretching and toggling dry and wet leather ,for whole cow leather or half cow hide.

Steam, oil, hot water and others as heating resource.
PLC auto control the temperature, humidity, running time, count leather, track auto lubricate, leather stretch and finalize the shape, expand the yield of leather more than 6%
Manual or auto control.

Technical Parameters
Model	Working plate(mm)	Plate number (frame)
GGZB2-2630	2600x3000	41-160 ( plate size or number possible option)
GGZB2-2636	2600x3600
GGZB2-3030	3000x3000
GGZB2-3036	3000x3600
GGZB2-3040	3000x4000

Product Details

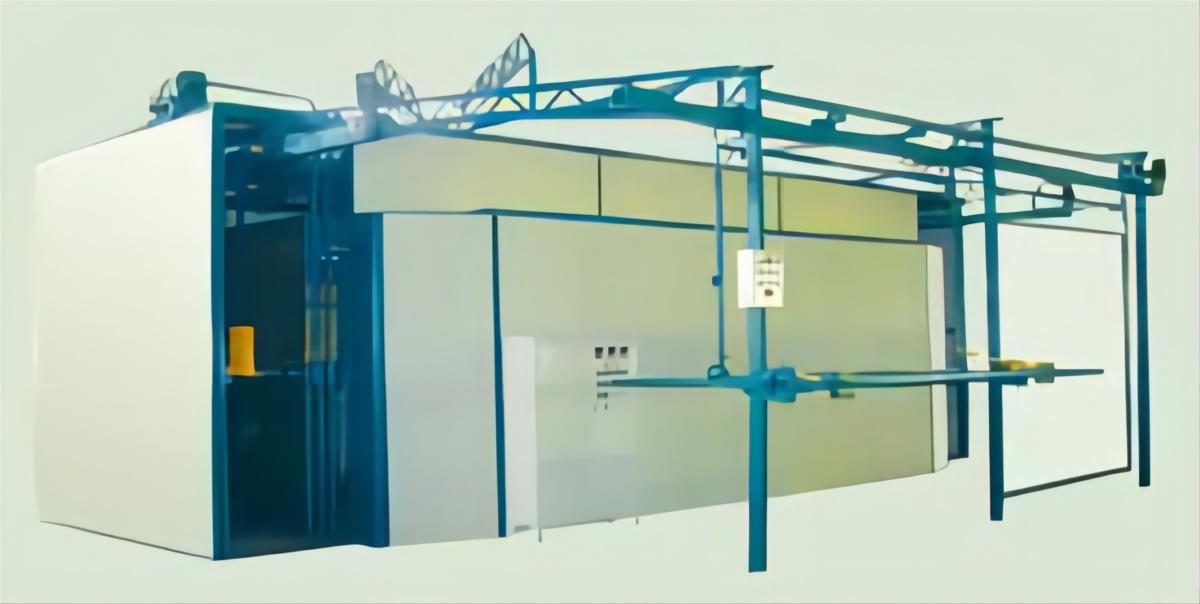

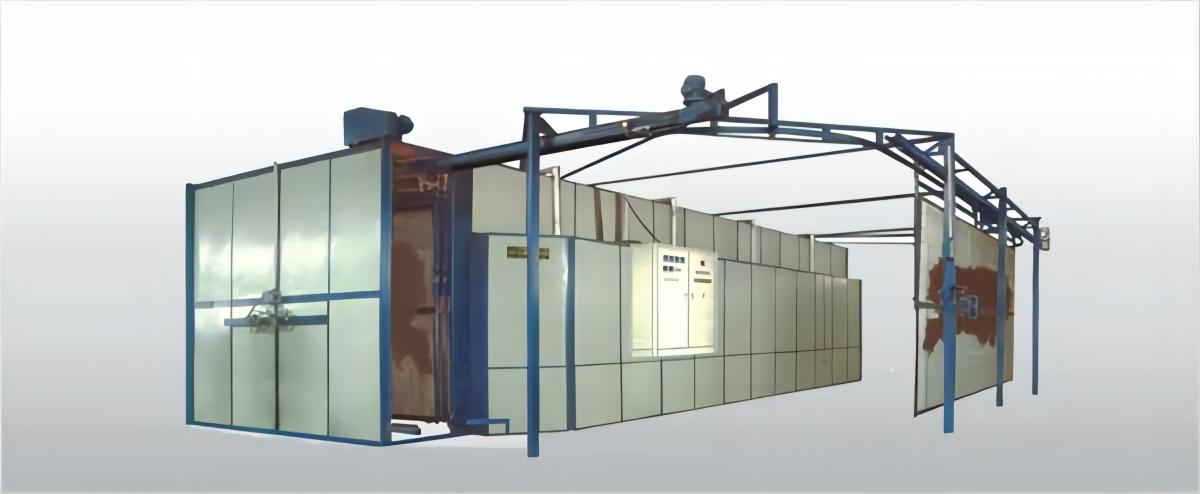

C Manual Box-Type Toggling Machine

For toggling small capacity of any skin.

1. Steam, oil, hot water and others as heating resource.

2. Plate turn over possible by air cylinder, strength by mechanical, air cylinder or manual, up to choose.

Technical Parameters
Model	GGZB1
Plate size(mm)	3500x3000 (size can be customized)
Plate number (frame)	30
Temperature (℃)	30
Steam (Mpa)	0.6
Requested steam (kg/h)	260~300
Dry time (h)	4~6
Strength range (mm)	0~120
Total Power (kW)	11
Weight (kg)	18000
Dimension (mm) L xW xH	14400x5400x3600
